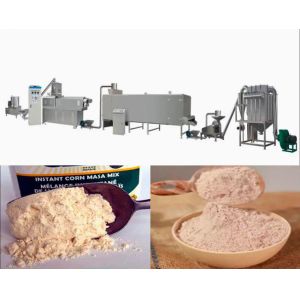

Extruded Rice Baby Powder Nutritional Flour Processing Line
I. Brief Instruction
Products: baby rice powder, sesame paste, beans powder ect
Raw material: rice, beans and all kinds of grains
Flow chart: Mixing ---Extrusion ----baking ---grinding
1 mixer
2 screw conveyor
3 double screw extruder
4 air conveyor
5 baking oven
6 automatic grinding system
7 mixing machine
II. Technical Parameters
| model | installed power | power consumption | output | size |
| MK65 | 66kw | 50kw | 150kg/h | 19000x1200x2200mm |
| MK70 | 100kw | 67kw | 250kg/h | 20000x1500x2200mm |
| MK85 | 130kw | 100kw | 600-800kg/h | 30000x3500x4300mm |
III. Why You Must Choose Us
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
3. The gearbox has automatic lubrication function, with extends gear life.
4. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
5. Barrel with water-cooled circulation, it makes extruder can be used not only for corn/rice, also for wheat flour/starch which are raw materials with high viscosity. Through different moisture-extrusion temperature ratio, it can make whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
