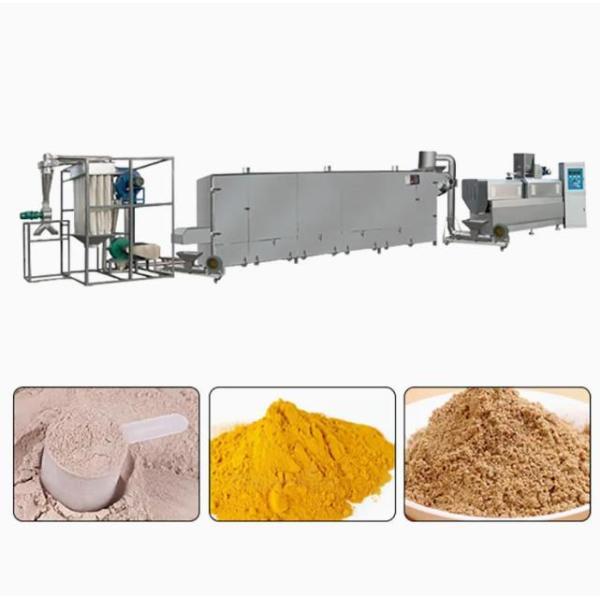

Nutritional Powder Processing Line/baby Food Production Line/making Machine
Producion Introduction
The nutritional powder production line is according to the European and American technology, our company developed to our own technology.Now our nutritional powder production line widely used in all kinds of baby rice, sesame paste, walnut paste-type products.
a. The processing line is the line which adopts the technology of occident equipments.
b. It has many characteristics such as high automation, good stability, easy operation, large output with shorter time, etc.
c. What is more, it adopts the improved technology which can avoid accident abuse.
d. It can process various materials popular in many countries, such as baby rice powder, sesame paste and nut paste food, etc.
e. This nutritional rice powder processing line is a new generation and efficient processing line.
f. You can buy one whole line to make dog food and cat food together.
Machine Flow Chart
Mixing system---Extrusion system----Cooling system—Flaking system--Drying system—Toasted system---Sugar Spraying system ---Drying system---- Packing system
1). Automatic
2). High quality
3). Good stability
4). Easy operation
5) . Large output
6). Long using life
Machine Features
1. Mixer : Make the corn residue or corn flour added to a nutritional additive and mixing a proportion of water uniformly.
2. Screw conveyor : Marinated raw material fed to the extruder feed hopper.
3. Double screw extruder: The material in the feed hopper into the extrusion system, to produce small spherical particles.
4. Shaker: Dispersed particles, to avoid overlap pressed together into a tableting machine.
5. Air conveyor:Transported the particles into the tableting machine.
6. Flaking machine:Flaking the corn ball to raw corn flakes.
7. Air conveyor:Transfer the corn flakes to the baking oven.
8. Mutil-layer oven: Oven mostly is toaster,temperature between 0-200 degrees self-regulation through the control cabinet,internal stainless steel double mesh bag,baking time may be adjusted according to the speed,remove the water.
Technical Parameters
| Model | Installed Power | Power Consumption | Output | Size(L×W× H) |
| MK65 | 275kw | 193kw | 120-150kg/h | 39000x1200x2200mm |
| MK70 | 282kw | 197kw | 200~300kg/h | 41000x1500x2200mm |
Our Related Machine/Processing Line:
1. Series of Single Screw Extruder/Processing Line
2. Series of Twin-screw Extruder/Processing Lin
3. Core Filling Extrusion Snack Processing Line
4. Cereal-corn Flakes Processing Line
5. Nutritional Powder Processing Line
6. Screw, Shell Food Processing Line
7. Protein Food Processing Line
8. Fish Feed Pellet Making Machine
9. Pet Food Processing Line
10. Chewing Jam Center Pet Food Processing Line
11. Automatic Instant Noodle Processing Line
12. Mini Instant Noodle Processing Line
14. Series of Roasting Oven
